The FX5PRO has been designed by industry professionals to solve the real-world challenges faced by trenchless pipe rehabilitation specialists.
Shall we talk?
(+34) 692 870 985

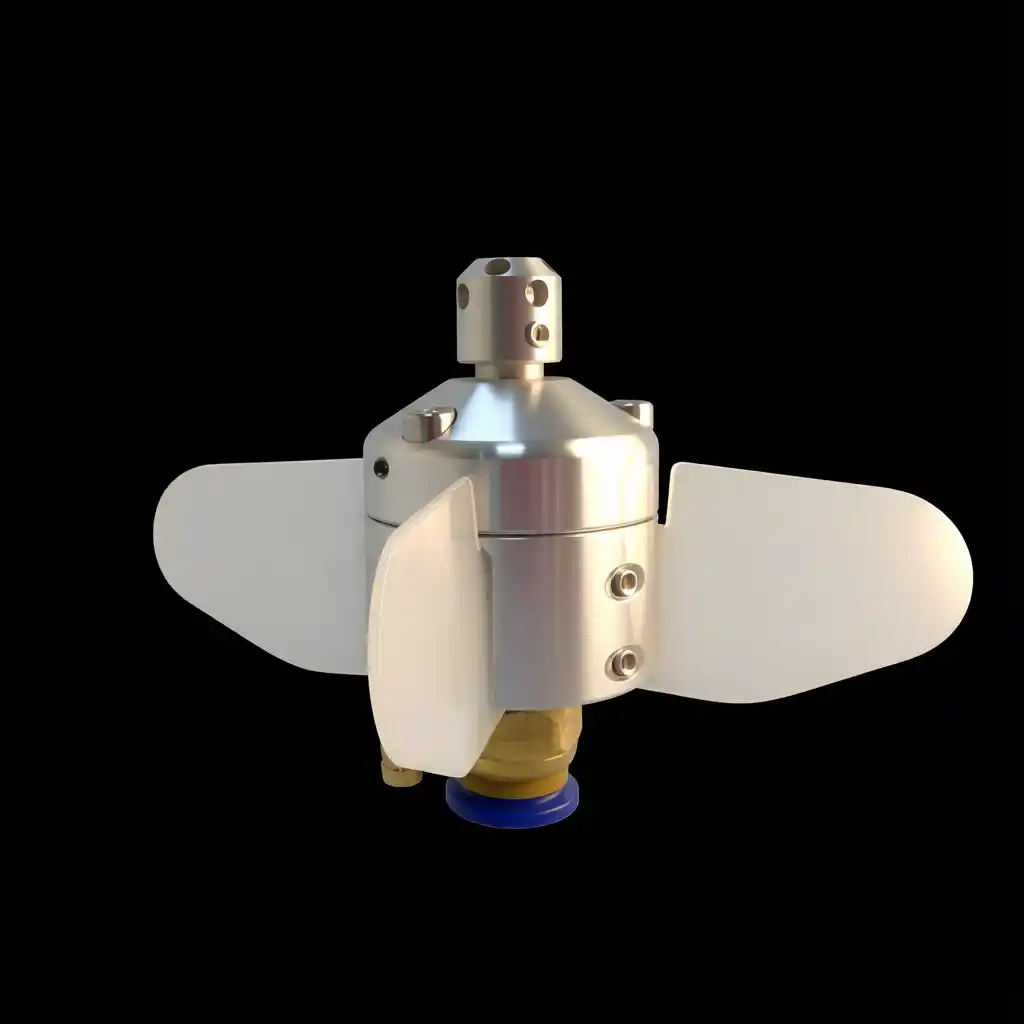

SPRAYFORCE TURBINE
Dual-axis rotational systemHigh-performance turbine that transforms resin into a uniform and controlled spray. It ensures consistent atomization for a homogeneous and precise application inside the pipe.

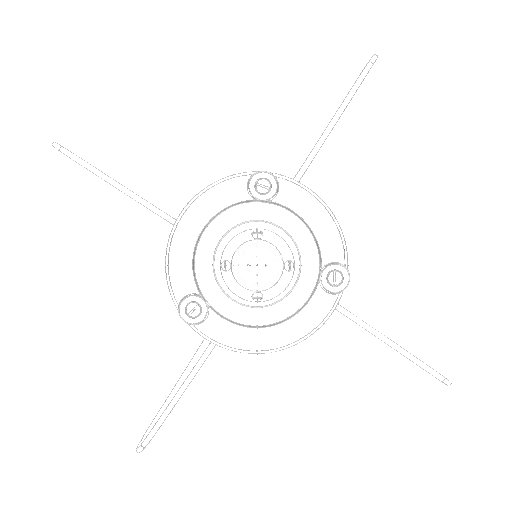

Centralizers
Plastic centralizers for small-diameter pipes and aluminum centralizers for larger-diameter pipelines.
Spray Projection Dome
Precision-engineered spray projection dome manufactured from high-strength duralumin for maximum durability and reduced weight.Designed to withstand demanding trenchless rehabilitation environments, it features reversible rotational capability, allowing bidirectional spin control to optimize resin distribution, coating thickness uniformity, and internal pipe surface coverage.

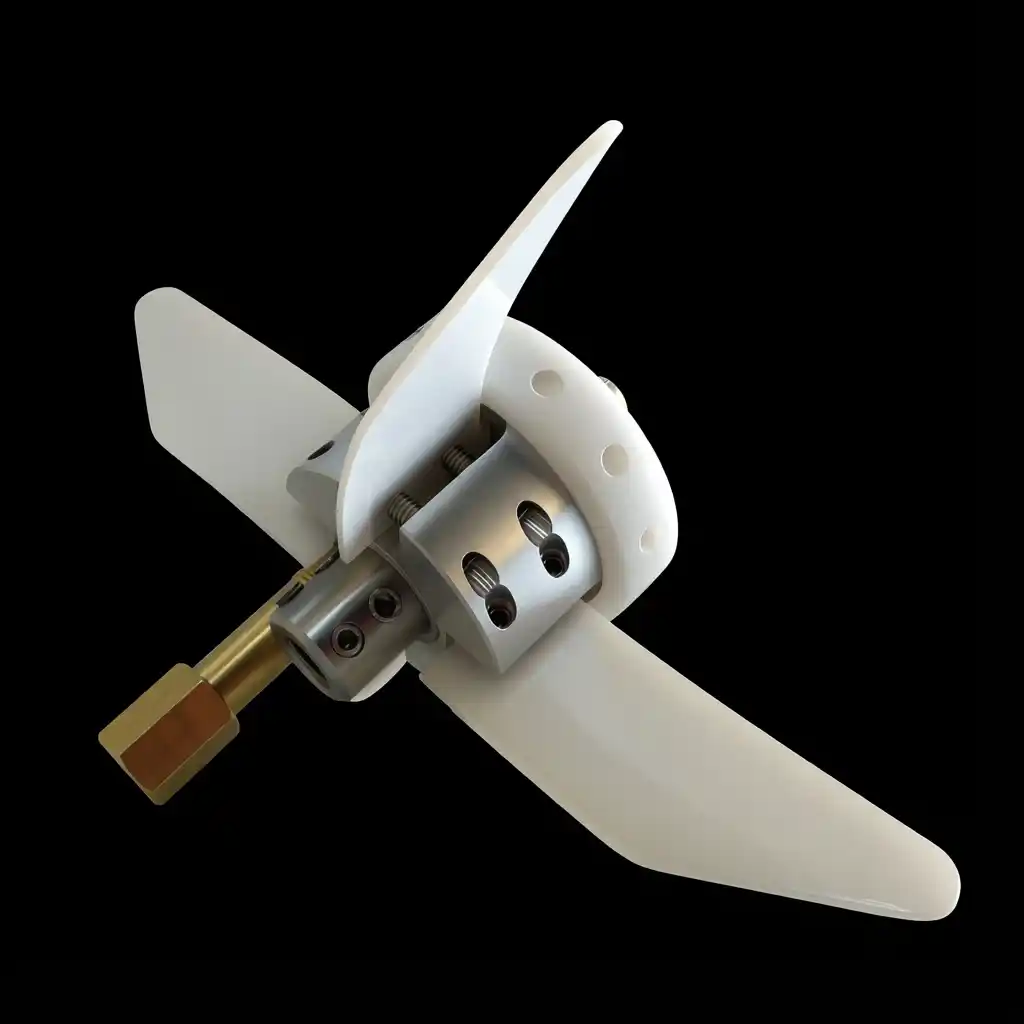

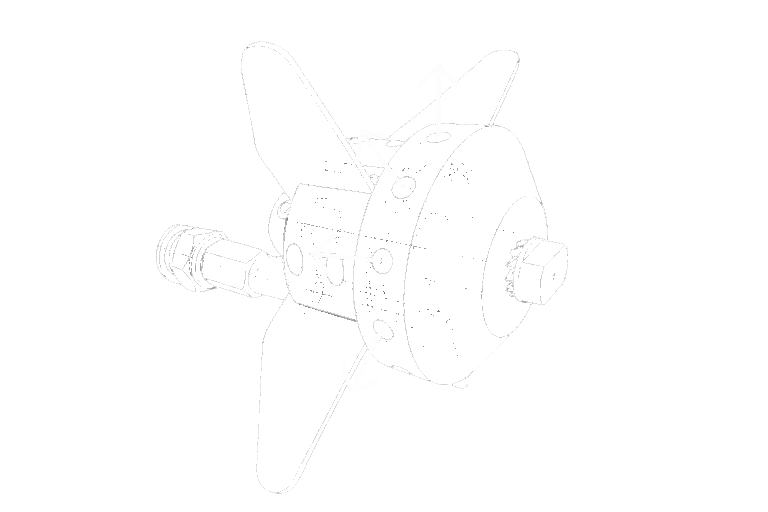

SPINCAST PROJECTOR
Independent of external compressed air supplyCentrifugal spray system that projects the resin using rotational force, ensuring a fully uniform 360° distribution. Optimizes coating thickness and adhesion across the entire pipe circumference.
Centralizers
Plastic centralizers for small-diameter pipes and aluminum centralizers for larger-diameter pipelines.
Rotary Projection Dome
The servo-driven rotary spray head operates using the same drive cable as the FX5PRO system and projects the resin through centrifugal force, ensuring uniform 360° internal pipe coating and controlled material distribution.

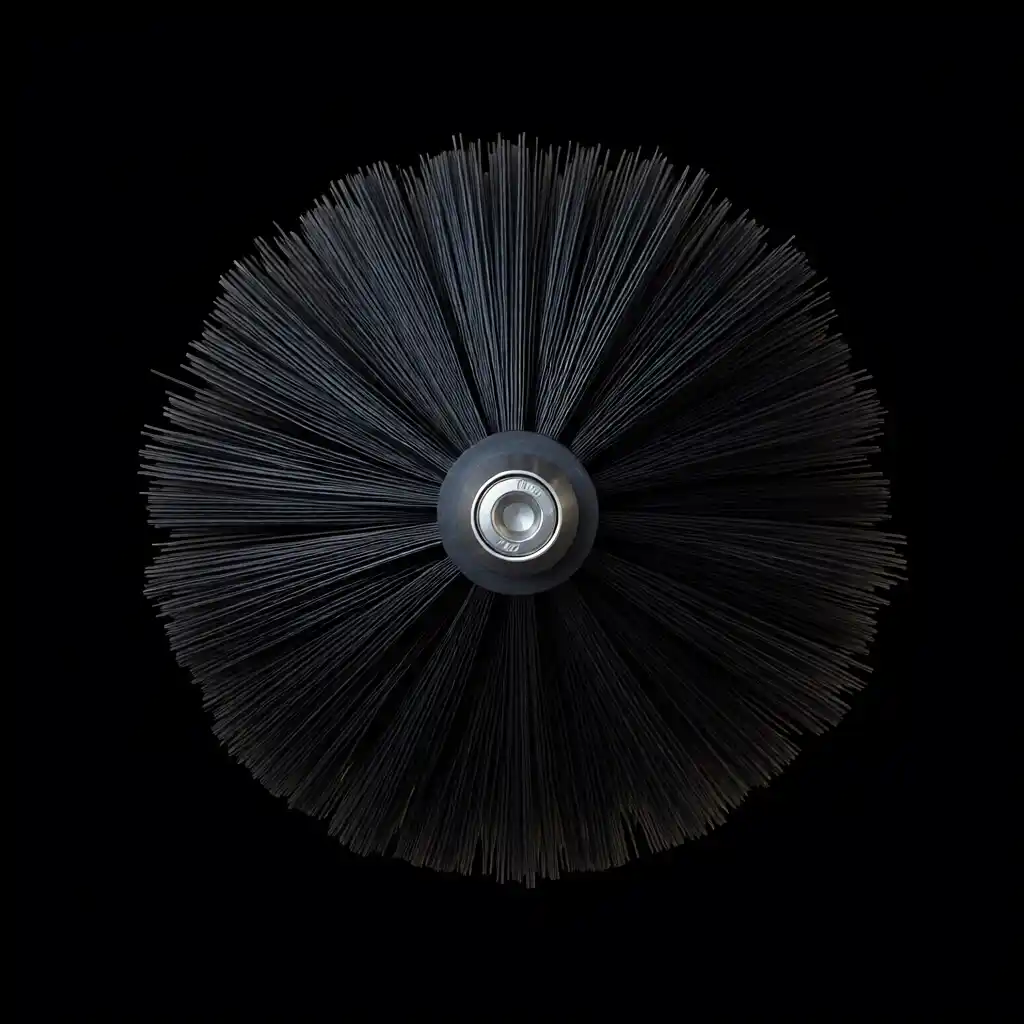

POWERBRUSH HEAD
ROTARY BRUSH COATING SYSTEMApplicator head designed to distribute resin through controlled rotational contact. Ensures uniform application in specific sections, providing consistent thickness and maximum structural adhesion.
Polyamide bristles
Soft polyamide bristles engineered to ensure maximum adhesion to the pipe substrate.

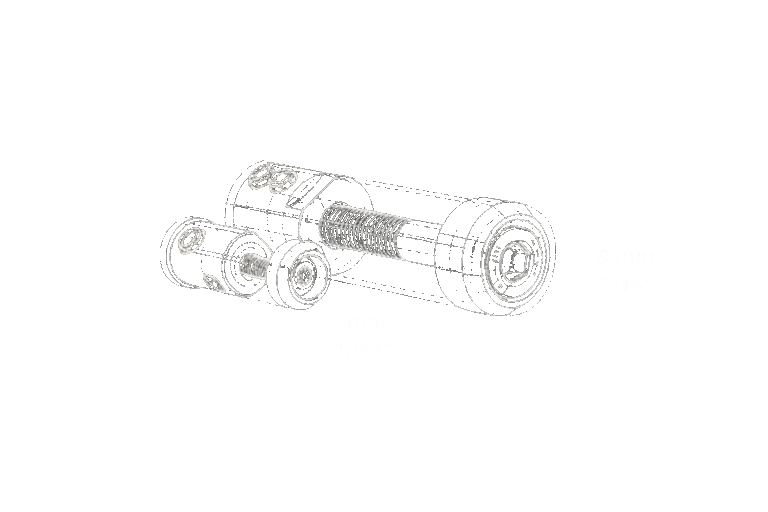

Brush anchor
Mechanical retention anchor designed to secure the brush assembly to the rotary guide cable, ensuring stable coupling during rotation and thrust operations. Prevents accidental decoupling under load, maintaining operational integrity and safety throughout the pipe rehabilitation process.
PENSADA PARA EL DÍA A DÍA
TOMA EL CONTROL
FX5PRO DOESN’T DECIDE FOR YOU — it empowers you to control the outcome with precision, stability, and professional criteria.
Indicador de nivel
Indicador de nivel integrado que permite visualizar de forma clara el estado y la cantidad de resina disponible en el sistema. Facilita el control del consumo durante la intervención, ayudando a anticipar recargas y a mantener una proyección continua y estable. Un elemento clave para mejorar la seguridad operativa y evitar interrupciones inesperadas en trabajos de resinado.
Visualizador de sentido de giro
Facilita un control preciso de la aplicación de la resina, asegurando que el giro se realiza en el sentido correcto para una distribución homogénea y continua. Un elemento clave para evitar errores operativos, optimizar el resultado final y garantizar la máxima calidad en trabajos de resinado interior.
Parada de emergencia
Parada de emergencia integrada que permite la detención inmediata del sistema ante cualquier situación imprevista. Diseñada para ofrecer una respuesta rápida y segura, protege tanto al operario como al equipo, evitando daños y garantizando un control total de la intervención en todo momento. Un elemento esencial para trabajar con máxima seguridad, fiabilidad y confianza en entornos profesionales.
Ayuda y formación Online
Accede a nuestra plataforma de ayuda y formación online diseñada especialmente para usuarios de FX5PRO. Encuentra tutoriales paso a paso, vídeos explicativos y recursos formativos que te enseñan a dominar cada función con rapidez y confianza. Ya sea que estés empezando o busques perfeccionar tus técnicas, nuestra formación te acompaña en cada paso para sacar el máximo partido a tu equipo.
Control de rotación
Control analógico de rotación que permite regular de forma precisa y progresiva la velocidad y el comportamiento del giro durante la proyección. Ofrece al operario un manejo directo y sensible, facilitando ajustes en tiempo real según el diámetro de la tubería y las condiciones de trabajo. Un sistema de control manual que aporta estabilidad, precisión y un dominio absoluto del proceso de resinado interior.
Control de empuje
Controles analógicos de control de empuje que permiten regular de forma directa y progresiva la fuerza aplicada durante el avance del sistema. Ofrecen al operario una respuesta inmediata y precisa, facilitando ajustes finos según el estado de la tubería y las condiciones reales de trabajo. Un control manual fiable que aporta sensibilidad, seguridad y dominio total del proceso en intervenciones de alta exigencia.
Indicador de esfuerzo
Indicador de esfuerzo que muestra de forma visual el nivel de carga y resistencia durante el avance y la rotación del sistema. Permite al operario interpretar en tiempo real el comportamiento del conjunto dentro de la tubería, facilitando ajustes precisos para evitar sobreesfuerzos, bloqueos o desgaste prematuro. Una herramienta clave para trabajar con seguridad, control y máxima eficiencia.
Control de encendido
Control de encendido analógico e independiente que permite activar y desactivar el sistema de forma directa y segura. Incorpora LED de estado para una identificación visual inmediata del funcionamiento, aportando claridad y confianza al operario en todo momento. Un sistema sencillo y fiable que refuerza el control operativo y mejora la seguridad durante la intervención.
Centralizers
Plastic centralizers for small-diameter pipes and aluminum centralizers for larger-diameter pipelines.
Spray Projection Dome
Precision-engineered spray projection dome manufactured from high-strength duralumin for maximum durability and reduced weight.Designed to withstand demanding trenchless rehabilitation environments, it features reversible rotational capability, allowing bidirectional spin control to optimize resin distribution, coating thickness uniformity, and internal pipe surface coverage.
SPRAYFORCE TURBINE
Dual-axis rotational systemHigh-performance turbine that transforms resin into a uniform and controlled spray. It ensures consistent atomization for a homogeneous and precise application inside the pipe.
SPINCAST PROJECTOR
Independent of external compressed air supplyCentrifugal spray system that projects the resin using rotational force, ensuring a fully uniform 360° distribution. Optimizes coating thickness and adhesion across the entire pipe circumference.
Centralizers
Plastic centralizers for small-diameter pipes and aluminum centralizers for larger-diameter pipelines.
Rotary Projection Dome
The servo-driven rotary spray head operates using the same drive cable as the FX5PRO system and projects the resin through centrifugal force, ensuring uniform 360° internal pipe coating and controlled material distribution.
POWERBRUSH HEAD
ROTARY BRUSH COATING SYSTEMApplicator head designed to distribute resin through controlled rotational contact. Ensures uniform application in specific sections, providing consistent thickness and maximum structural adhesion.
Polyamide bristles
Soft polyamide bristles engineered to ensure maximum adhesion to the pipe substrate.
Brush anchor
Mechanical retention anchor designed to secure the brush assembly to the rotary guide cable, ensuring stable coupling during rotation and thrust operations. Prevents accidental decoupling under load, maintaining operational integrity and safety throughout the pipe rehabilitation process.
Make it simple, do it perfect
The FX5PRO has been designed by industry professionals to solve the real-world challenges faced by trenchless pipe rehabilitation specialists.
Ready to operate
Less setup, fewer adjustments, and immediate start-up.
Total control
Precise and consistent regulation of resin projection to ensure uniform results, maximum efficiency, and operational reliability in every application.
Make it simple, do it perfect
The FX5PRO has been designed by industry professionals to solve the real-world challenges faced by trenchless pipe rehabilitation specialists.
Ready to operate
Less setup, fewer adjustments, and immediate start-up.
Total control
Precise and consistent regulation of resin projection to ensure uniform results, maximum efficiency, and operational reliability in every application.

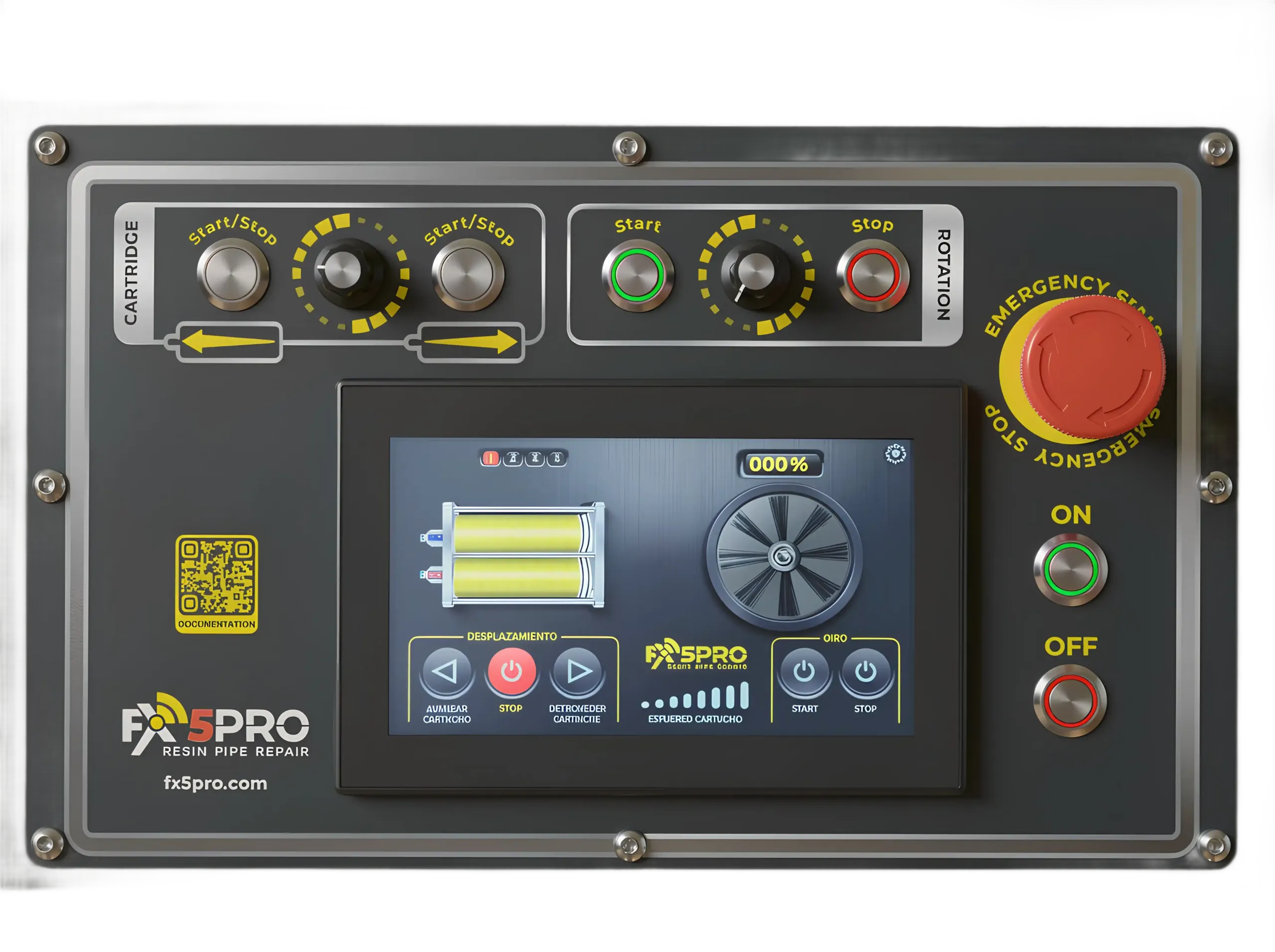

Level indicator
Integrated level indicator providing clear, real-time visualization of resin status and available volume within the system. Enables precise consumption monitoring during operation, allowing operators to anticipate refills and maintain continuous, stable projection performance. A critical component for enhancing operational safety and preventing unexpected downtime during pipe rehabilitation and internal coating applications.
Rotation Direction Indicator
Enables precise control of the resin application process by ensuring correct rotational direction for uniform, continuous 360° distribution. A critical component for preventing operational errors, optimizing coating performance, and guaranteeing maximum quality standards in internal pipe rehabilitation and resin lining operations.
Integrated Emergency Stop
Integrated emergency stop system enabling immediate shutdown in the event of any unforeseen situation. Engineered to deliver a rapid and safe response, it protects both the operator and the equipment, preventing damage and ensuring full operational control at all times. An essential safety component for maintaining maximum protection, reliability, and confidence in professional working environments.
Online Support & Training
Access our dedicated online support and training platform, specifically developed for FX5PRO users. Discover step-by-step tutorials, detailed instructional videos, and specialized training resources designed to help you master every system function with speed, precision, and confidence. Whether you are starting out or looking to refine your techniques, our professional training program supports you at every stage to maximize the performance and efficiency of your equipment.
nalog rotation control
Analog rotation control enabling precise and progressive regulation of rotational speed and spray behavior during projection. It provides the operator with direct, responsive handling, allowing real-time adjustments according to pipe diameter and on-site operating conditions. A manual control system that ensures stability, accuracy, and full command of the internal pipe lining process.
Thrust Control
Analog thrust control knobs enabling direct and progressive adjustment of the applied force during system advancement. They provide the operator with immediate and precise response, allowing fine tuning according to pipe condition and real on-site operating parameters. A reliable manual control system that delivers sensitivity, operational safety, and full command of the process in high-demand rehabilitation interventions.
Digital Thrust Force Indicator
Mechanical Stress Indicator providing real-time visual feedback of system resistance during advancement and rotational operation. It enables the operator to accurately interpret internal mechanical stress within the pipeline, allowing precise adjustments to prevent excessive strain, stalling, or premature component wear. A critical monitoring element that enhances operational safety, process control, and maximum efficiency in internal pipe rehabilitation.
Power Control
Independent analog power control enabling direct and secure system activation and shutdown. Equipped with integrated status LEDs for immediate visual confirmation of operational state, providing clarity and operator confidence at all times. A simple and reliable control system that reinforces operational command and enhances safety during rehabilitation interventions.
Engineered for daily operations
FULL OPERATIONAL CONTROL
FX5PRO DOESN’T DECIDE FOR YOU — it empowers you to control the outcome with precision, stability, and professional criteria.
Level indicator
Integrated level indicator providing clear, real-time visualization of resin status and available volume within the system. Enables precise consumption monitoring during operation, allowing operators to anticipate refills and maintain continuous, stable projection performance. A critical component for enhancing operational safety and preventing unexpected downtime during pipe rehabilitation and internal coating applications.
Rotation Direction Indicator
Enables precise control of the resin application process by ensuring correct rotational direction for uniform, continuous 360° distribution. A critical component for preventing operational errors, optimizing coating performance, and guaranteeing maximum quality standards in internal pipe rehabilitation and resin lining operations.
Integrated Emergency Stop
Integrated emergency stop system enabling immediate shutdown in the event of any unforeseen situation. Engineered to deliver a rapid and safe response, it protects both the operator and the equipment, preventing damage and ensuring full operational control at all times. An essential safety component for maintaining maximum protection, reliability, and confidence in professional working environments.
Online Support & Training
Access our dedicated online support and training platform, specifically developed for FX5PRO users. Discover step-by-step tutorials, detailed instructional videos, and specialized training resources designed to help you master every system function with speed, precision, and confidence. Whether you are starting out or looking to refine your techniques, our professional training program supports you at every stage to maximize the performance and efficiency of your equipment.
nalog rotation control
Analog rotation control enabling precise and progressive regulation of rotational speed and spray behavior during projection. It provides the operator with direct, responsive handling, allowing real-time adjustments according to pipe diameter and on-site operating conditions. A manual control system that ensures stability, accuracy, and full command of the internal pipe lining process.
Thrust Control
Analog thrust control knobs enabling direct and progressive adjustment of the applied force during system advancement. They provide the operator with immediate and precise response, allowing fine tuning according to pipe condition and real on-site operating parameters. A reliable manual control system that delivers sensitivity, operational safety, and full command of the process in high-demand rehabilitation interventions.
Digital Thrust Force Indicator
Mechanical Stress Indicator providing real-time visual feedback of system resistance during advancement and rotational operation. It enables the operator to accurately interpret internal mechanical stress within the pipeline, allowing precise adjustments to prevent excessive strain, stalling, or premature component wear. A critical monitoring element that enhances operational safety, process control, and maximum efficiency in internal pipe rehabilitation.
Power Control
Independent analog power control enabling direct and secure system activation and shutdown. Equipped with integrated status LEDs for immediate visual confirmation of operational state, providing clarity and operator confidence at all times. A simple and reliable control system that reinforces operational command and enhances safety during rehabilitation interventions.
Engineered for demanding daily operations
FULL OPERATIONAL CONTROL
FX5PRO DOESN’T DECIDE FOR YOU — it empowers you to control the outcome with precision, stability, and professional criteria.

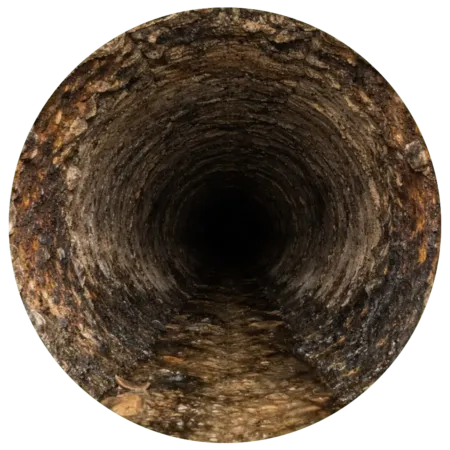

Move the slider to compare before and after
Enhance Your Operational Performance
THE MOST VERSATILE SYSTEM

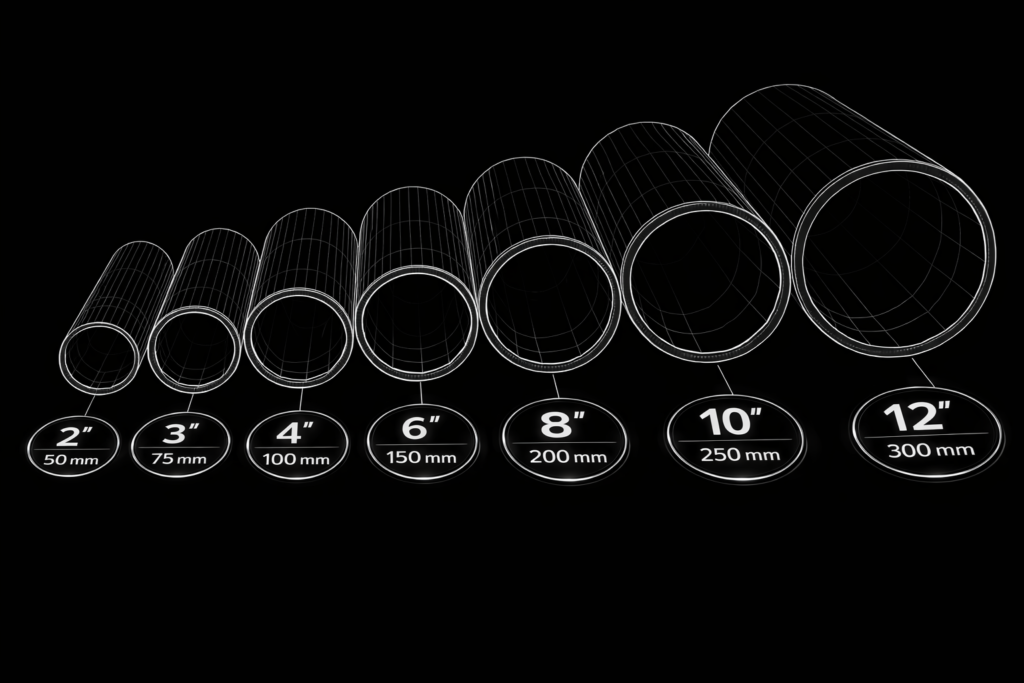

Engineered for multi-diameter pipe rehabilitation and adaptable to diverse trenchless applications without system reconfiguration.
Optimizes resin mixing, centrifugal or brush application, and internal pipe relining processes, reducing downtime and increasing jobsite efficiency.
Expanded application capabilities with enhanced operational flexibility and higher return per intervention.
A+B = FX5PRO
High-performance two-component system engineered for internal pipe rehabilitation.
FOR TIME-CRITICAL INTERVENTIONS

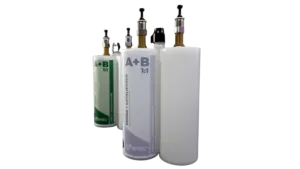

USE & DISPOSE
Pre-filled disposable resin cartridges ready for immediate deployment.
Automatic 1:1 precision mixing
Clean and rapid application process
Ideal for localized or spot repairs
Maximum operational control with minimal logistics
FOR COST-EFFICIENT OPERATIONS

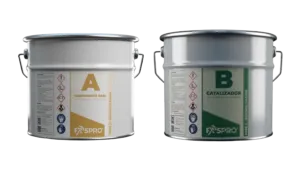

BULK SYSTEM
Industrial-format supply designed for high-volume rehabilitation projects.
Optimized cost per kilogram
Ideal for continuous operations
Fully compatible with FX5PRO application systems
Maximum profitability without compromising coating quality
FOR TOTAL MATERIAL FREEDOM
OPEN SYSTEM
Open refillable system. You choose the resin.
Compatible with any manufacturer
No dependency on proprietary cartridges
Full supplier flexibility
Real cost optimization while maintaining absolute process control

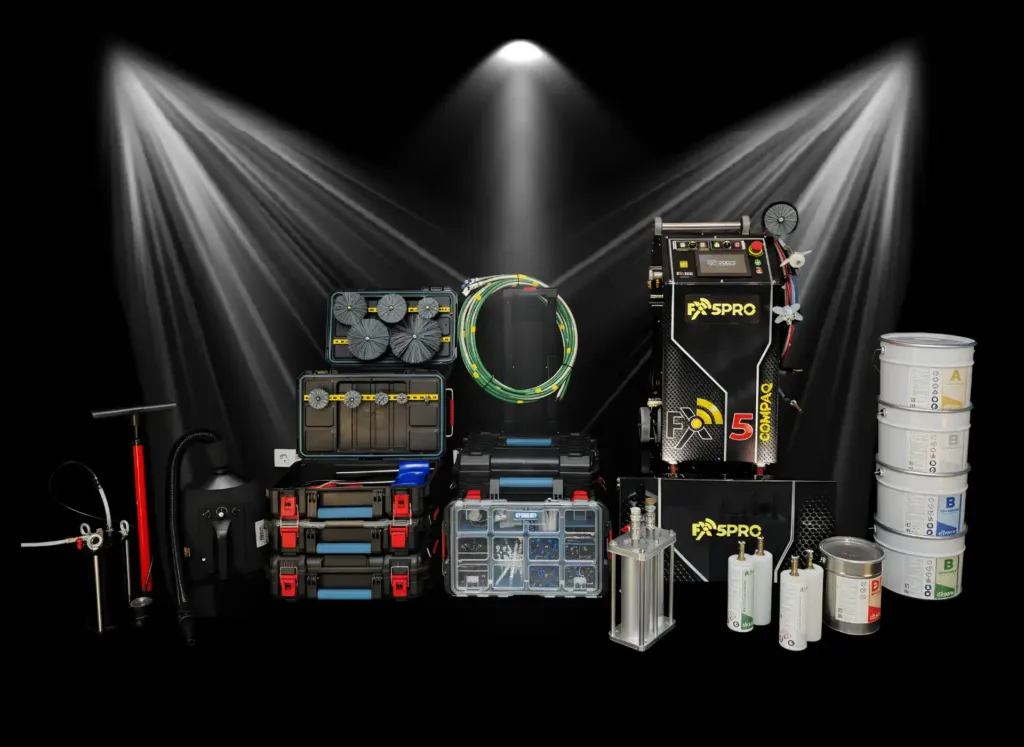

READY TO OPERATE
ALL IN ONE
A truly integrated all-in-one system engineered for immediate operational deployment from day one.
Includes everything required to prepare, mix, apply, and rehabilitate internal pipelines without unexpected add-ons or hidden costs.
A complete trenchless rehabilitation solution, ready to deliver professional-grade results with full process control and zero improvisation.
