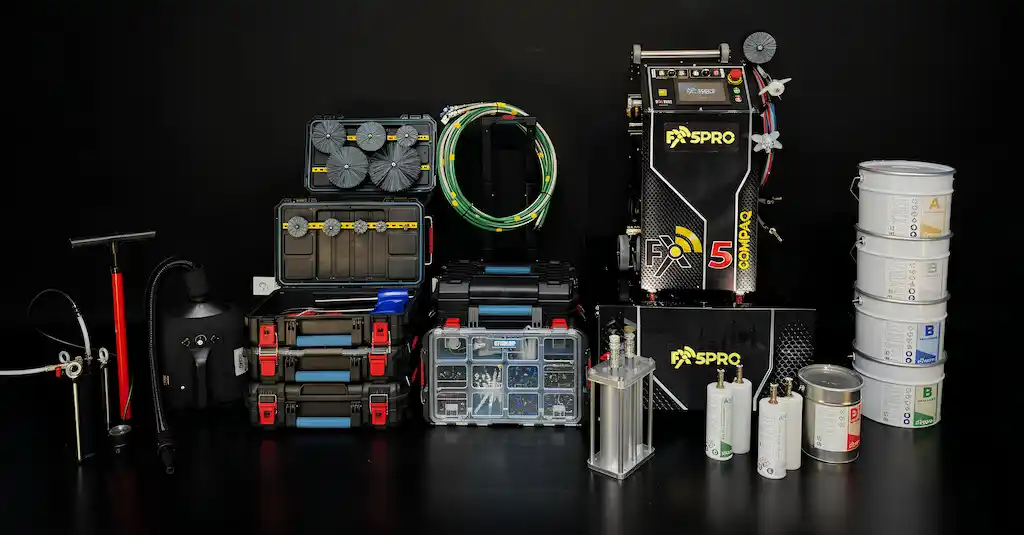

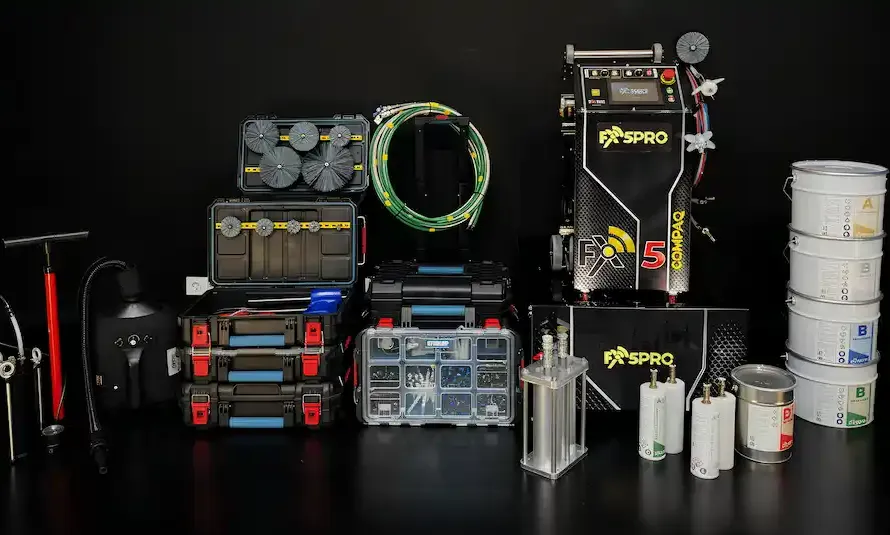

FX5PRO COMPAQ SYSTEM – Open Pipe Lining System up to 300 mm (12”)

Professional Open System for Internal Pipe Rehabilitation

The FX5PRO COMPAQ SYSTEM is a complete professional pipe lining system engineered for advanced internal pipe rehabilitation without excavation, demolition or structural disruption. Designed for trenchless pipe repair, spray-in-place pipe lining and structural epoxy coating, this system delivers high-performance results in vertical stacks, horizontal drainage lines and complex pipe networks.

With an operational reach of up to 25 linear meters (82 ft) and an approximate vertical working height of 8 floors, the system is built for real-world building rehabilitation projects. It is compatible with pipe diameters ranging from 32 mm to 300 mm (1 1/4” to 12”), making it suitable for residential plumbing systems, commercial drainage installations, wastewater networks and industrial process pipelines.

Unlike closed and restrictive pipe lining machines, the FX5PRO COMPAQ SYSTEM is a fully open platform. It does not require proprietary consumables or locked resin cartridges. Contractors are free to use any compatible epoxy resin, structural coating, primer, pipe cleaning product or lining compound from any manufacturer. This open architecture eliminates supplier dependency, improves profit margins and provides complete material sourcing flexibility.

Core Projection Unit – Advanced Spray-In-Place Technology

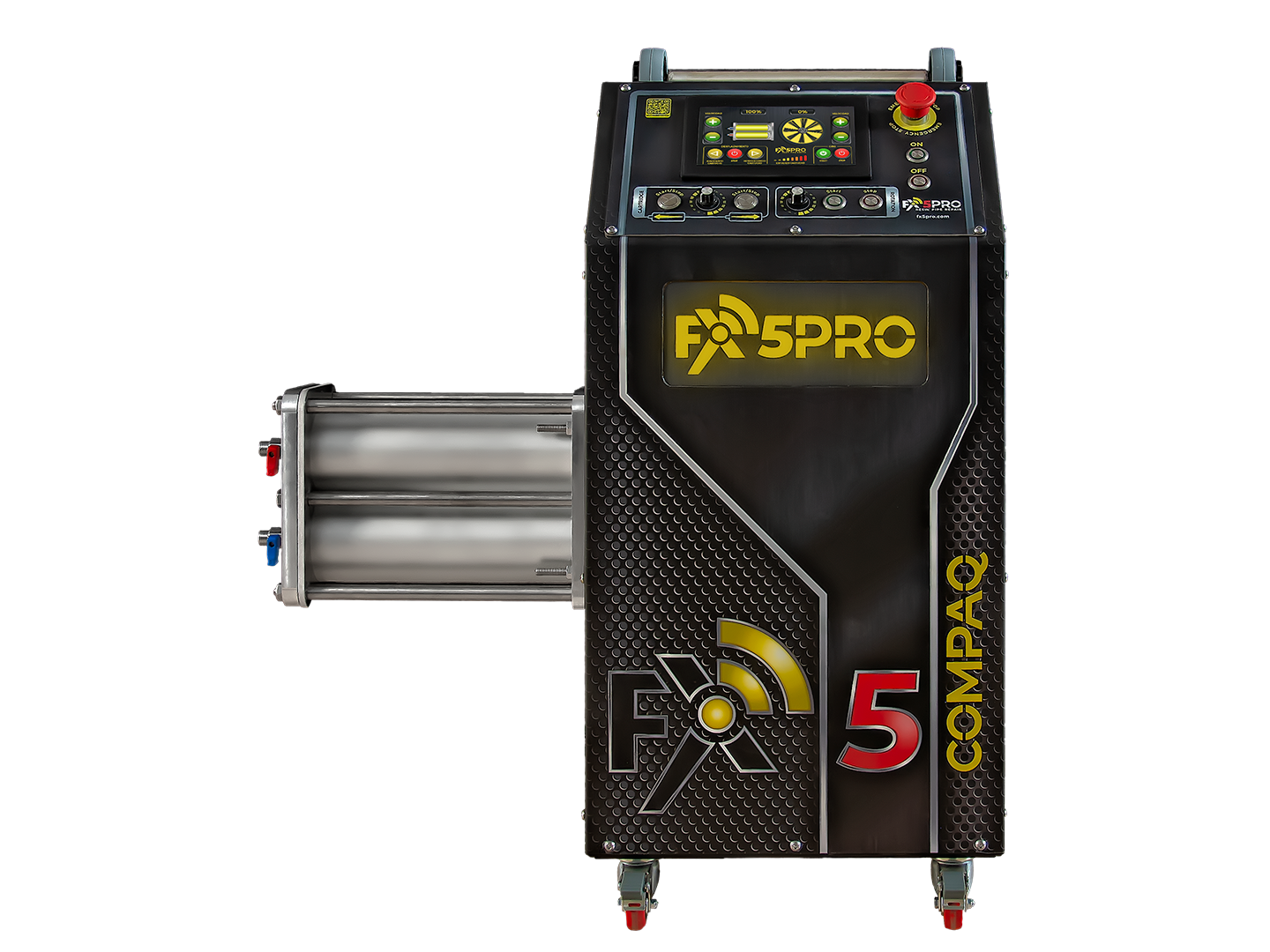

At the heart of the FX5PRO COMPAQ SYSTEM is a high-precision resin projection unit developed for professional epoxy spray lining and structural pipe coating. This is not a basic coating tool, but a controlled projection system engineered for consistent, homogeneous internal lining performance.

The projection unit ensures uniform circumferential coverage of the pipe wall, delivering controlled wall thickness and eliminating weak points. Precision flow regulation combined with synchronized rotational movement guarantees even resin distribution across vertical and horizontal sections. This prevents sagging in vertical stacks and ensures structural bonding between the epoxy lining and the host pipe.

Designed for spray-applied structural epoxy systems, anti-corrosion coatings and high-build lining materials, the unit adapts to the selected resin — not the other way around. As an open system, it remains fully compatible with market-available epoxy formulations, potable-water approved linings, chemical-resistant coatings and industrial-grade structural resins.

There are no mandatory supply agreements, no forced cartridge systems and no proprietary lock-ins. The contractor retains full operational control and purchasing freedom.

Guiding and Drive System

The FX5PRO COMPAQ SYSTEM incorporates reinforced push rods in 8 mm and 5 mm diameters (0.31” and 0.20”), enabling accurate positioning of turbines, spray heads, brushes and sanding tools inside the pipeline. These guides ensure stability and precise advancement during cleaning, preparation and coating phases.

Drill connectors with spring coupling allow rotational transmission from standard electric drills, providing flexible mechanical power during surface preparation and descaling operations.

Projection Turbine and Servo-Controlled Helical Spray Technology

The FX5PRO Projection Turbine™ combined with the ServoGiro™ helical spray head delivers professional-grade epoxy spray lining performance. Controlled rotation ensures balanced resin atomization and continuous circumferential coating inside pipes up to 300 mm (12”) in diameter.

ABS and aluminum centering systems guarantee precise alignment within the pipe, preventing vibration, uneven thickness or material accumulation. This ensures optimal coating performance in both vertical stacks and horizontal pipelines.

Complete Cleaning and Surface Preparation Kit

Proper mechanical preparation is critical for long-term structural adhesion in trenchless pipe rehabilitation. The FX5PRO COMPAQ SYSTEM includes a comprehensive cleaning and preparation package featuring:

• Carbide brushes from 32 mm to 275 mm (1 1/4” to 10.8”)
• Polyamide brushes for primer and final epoxy application
• Internal sanding heads in multiple diameters
• Orbital cleaning chains up to 150 mm (6”)
• Abrasive sanding rolls and replacement panels

This preparation system removes corrosion, scale, calcification, debris and surface contamination, increasing adhesion strength and ensuring durable structural pipe lining performance.

Micro Lining Repair Kit (32 mm – 75 mm / 1 1/4” – 3”)

The integrated Micro Lining Repair Kit extends system capability to small-diameter pipes including branch lines, kitchen drains, bathroom pipes and confined installations. It includes carbide and polyamide brushes, mini sanding heads and compact accessories for precise micro-lining applications.

Portable Battery Applicator – COMPAQ Pocket

The COMPAQ Pocket portable applicator provides localized repair capability and spot lining flexibility. Compatible with standard dual cartridges, it supports a wide range of third-party resin products, maintaining the open-system philosophy of the FX5PRO COMPAQ SYSTEM.

Drying and Curing Acceleration

The FX5PRO Dry Force™ PRO dual-motor drying unit enables efficient internal pipe drying prior to coating and accelerates epoxy curing. Controlled airflow improves surface conditions, reduces downtime and increases daily job productivity.

Cleaning Tank and Pneumatic System

The pressurized cleaning tank and pneumatic actuator allow internal flushing of hoses, turbines and spray heads after resin application. Dual 6 mm (0.24”) technical hoses support cleaning agents and water-based preparation products, extending equipment life and ensuring operational reliability.

Preloaded Epoxy Hoses and Open Cartridge Compatibility

The FX5PRO COMPAQ SYSTEM supports:

• Preloaded dual hoses up to 15 m (49 ft)
• Dual-component structural epoxy cartridges
• High-adhesion primer cartridges
• Technical pipe cleaning cartridges

However, the system remains fully compatible with alternative epoxy resins, structural lining materials and cleaning products available on the global market. Contractors maintain complete material independence.

Complete Fitting and Connector Kit

The professional connector case includes straight connectors, reducers (12–10 mm, 10–8 mm, 8–6 mm, 12–8 mm), end caps, cartridge plugs and static mixing nozzles, ensuring compatibility with a broad range of dual-component systems.

Key Advantages of the FX5PRO COMPAQ SYSTEM

• Fully open platform – no mandatory proprietary consumables
• Compatible with any suitable epoxy resin or structural pipe coating
• Pipe diameters from 32 mm to 300 mm (1 1/4” to 12”)
• Operational reach up to 25 m (82 ft)
• Approximate vertical capacity of 8 floors
• Complete cleaning, sanding and preparation system included
• Helical spray technology for uniform structural lining
• Portable battery applicator for spot repairs
• Integrated drying and curing acceleration system
• Professional transport cases for organized mobility

Applications

The FX5PRO COMPAQ SYSTEM is suitable for:

• Drain pipes
• Soil stacks
• Wastewater lines
• Vent pipes
• Commercial drainage systems
• Industrial process pipelines
• Residential plumbing networks
• Vertical and horizontal pipe sections

Whether used for spray-applied pipe lining, internal epoxy coating, drain relining or full structural rehabilitation, the FX5PRO COMPAQ SYSTEM delivers professional-grade trenchless performance with maximum operational freedom.

This is a complete, independent and future-proof pipe lining solution designed for contractors who demand flexibility, reliability and total supply autonomy.
